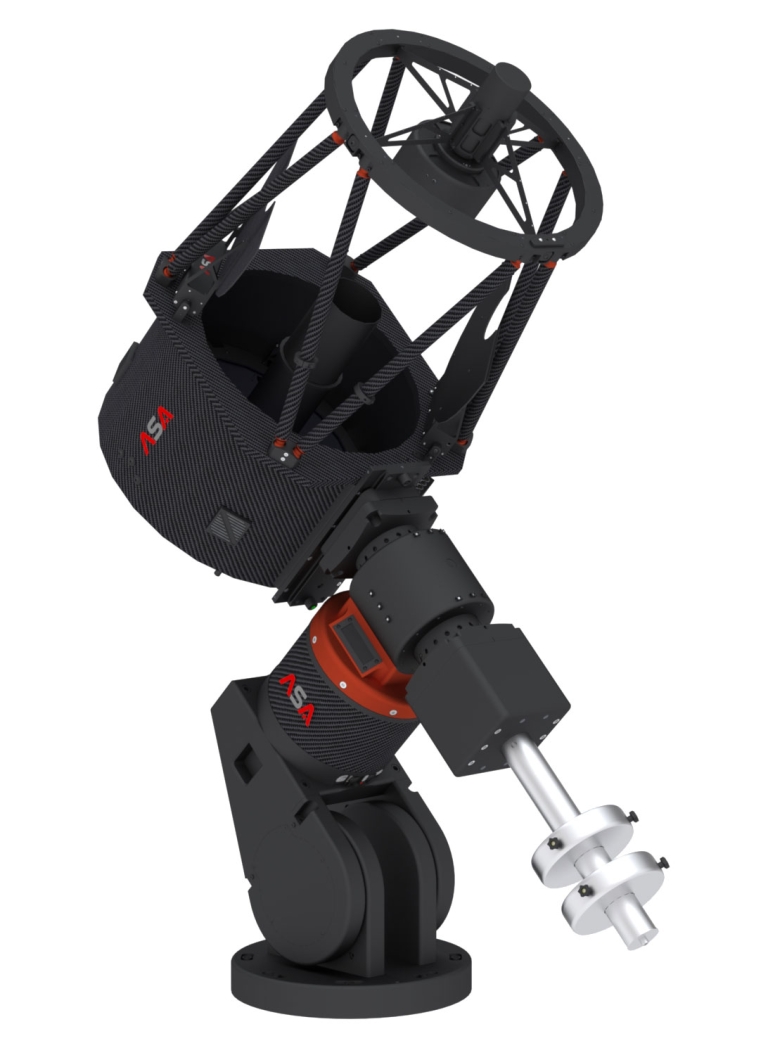

ASA RC600 + DDM200 + polar wedge

Write a review
Hubungi Kami untuk Harga
Ask a question
In stock

Main Facts

Optical design : Ritchey-Chrétien RC
Linear central obstruction : 40%
Focal length4200mm
Focal ratio system : f7
Clear Aperture / Focal Ratio Primary Mirror 600mm (23.6 inch) / f2.5
Image field 100mm (1.36 degrees)
Mirror material Fused silica

Back Focus from flange 210.38mm
Weight tube 105kg (231lbs)
Motor ASA Direct Drive

Latitude Range 0 to 90 degrees

Max. load capacity 200kg (441lbs)
Weight mount (without counterweight) 138kg (304lbs)
Software ASA API (application programming interface) available autumn 2023 ASA Software(Autoslew, Sequence-windows based, ACC) with ASCOM-Alpaca

Max. slew speeds Up to 50 degrees per second

Pointing Accuracy (20° to 85°) <8” RMS with pointing model and ASA telescope

Tracking Accuracy (20° to 85°) <0,25” RMS within 5 minutes tracking time over 5 min 0,05” RMS/min

System Natural Frequency 10 Hz or greater

No reviews found
