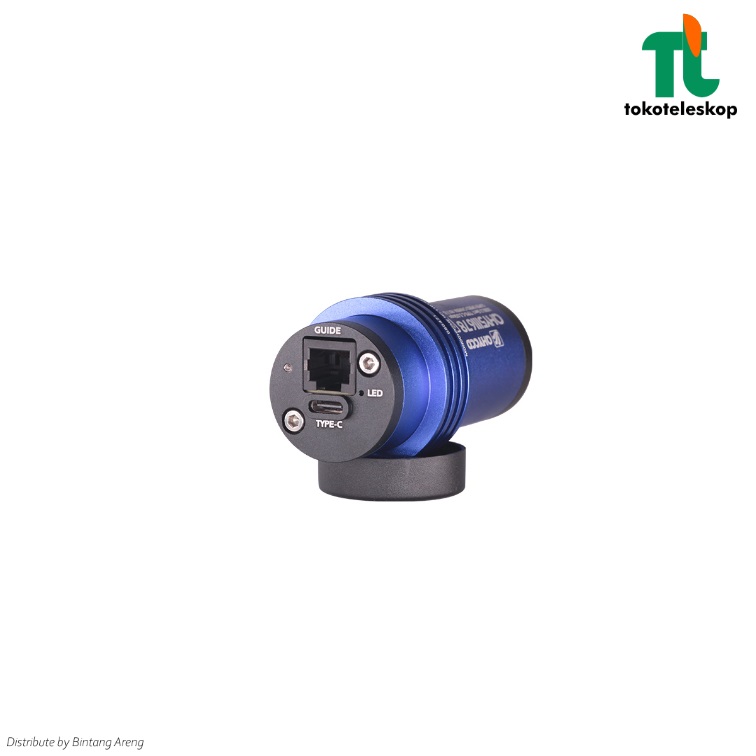

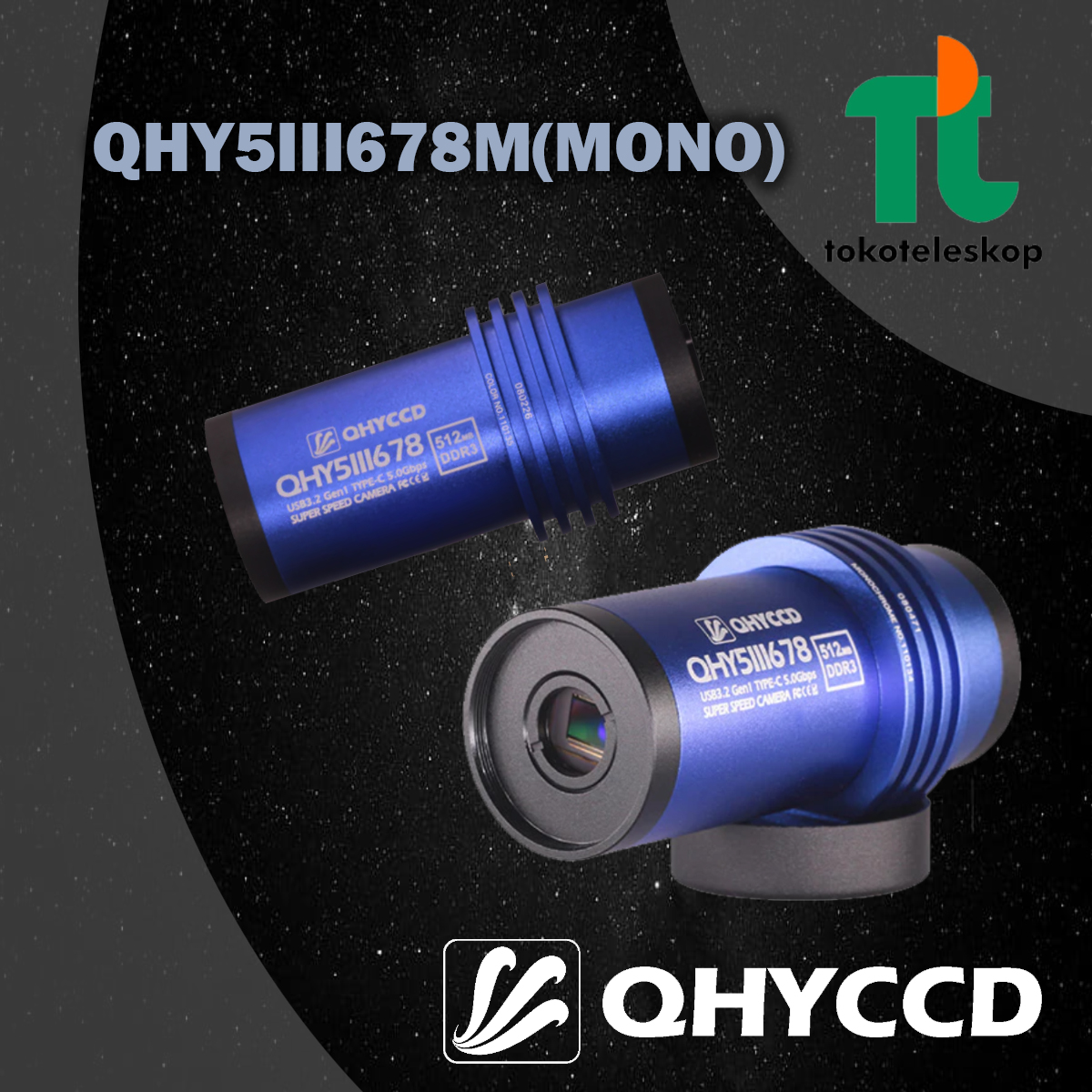

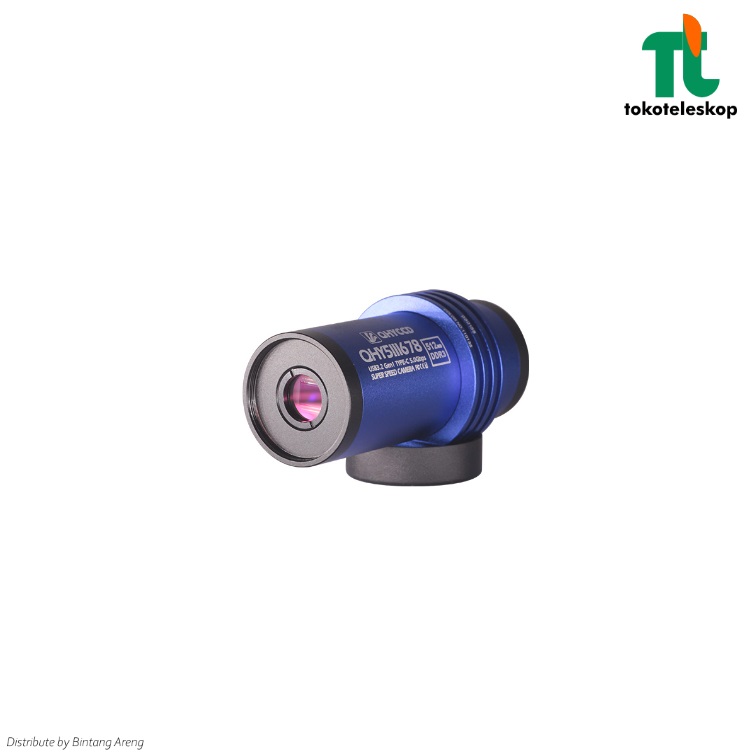

QHY5III678M (Mono)

Write a review
Hubungi Kami untuk Harga
Ask a question
Out of stock

Specification:

  • Model: QHY5III678
  • CMOS Sensor: Sony IMX678
  • Pixel Size: 2.0um*2.0um
  • Effective Pixel Area: 3856*2180
  • Effective Pixels: 8.4 Mega Pixel
  • Fullwell: 9ke-
  • Readout Noise: 0.57-3.3e-
  • AD Sample Depth: 12-bit (output as 16-bit and 8-bit)
  • Built-in Image Buffer: 512MB DDR3 Memory
  • ROI Frame Rate:
  • Full Resolution 43FPS @8BIT 22FPS @16BIT
  • 1080Lines 85FPS @8BIT 43.5FPS @16BIT
  • 640Lines  140FPS @8BIT 71FPS @16BIT
  • Exposure Time Range: 11us-900sec
  • Shutter Type: Electric Rolling Shutter
  • Computer Interface: USB3.2 Gen1 Type-C
  • Guide Port:st4
  • Telescope Interface: 1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector (An IR AR glass and an IR850nm filter are included in the standard version.)
  • Back Focal Length: 17mm(with adapter); 8±0.5mm(without adapter)
  • Weight: 90g
