QHY533M (Mono)

QHY533M (mono)

QHY533M can be directly connected to the QHYCFW3S-SR without removing any part of the filter wheel (like the filter container). This provides a very short back focal length and that’s easy to fix! Besides, QHY533M + QHYCFW3S-SR combination can be easily connected to a DSLR lens, with only one additional adapter (sold separately).

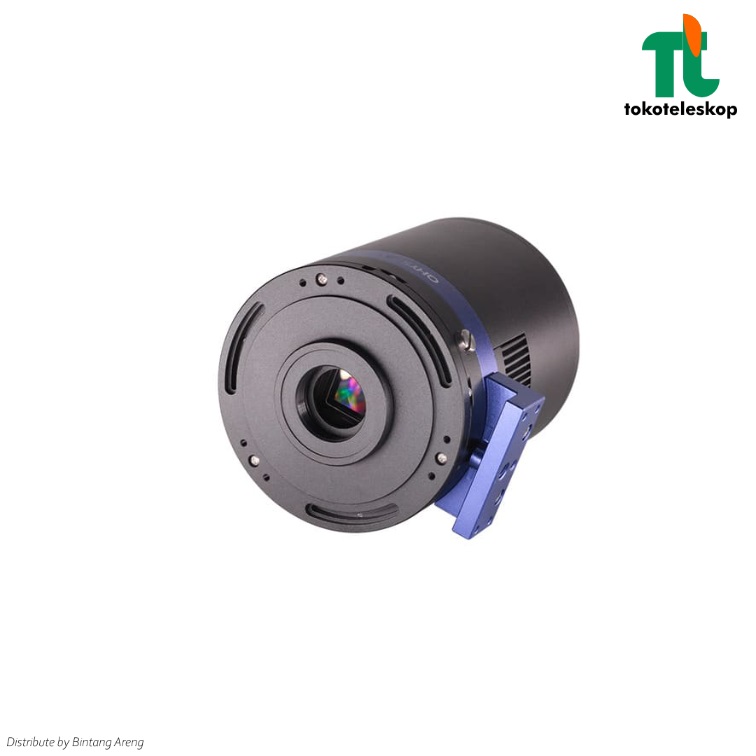

Both QHY533M come with an additional adapter for tripod interface. This makes it easier to shoot with DSLR lens.

Specification:

• Model: QHY533M
• CMOS Sensor: SONY IMX533 M
• Mono/Color: Mono
• FSI/BSI: BSI
• Pixel Size: 3.76um x 3.76um
• Effective Pixel Area: 3008*3028 (includes the optically black area and overscan area)
• Effective Pixels: 9MP
• Sensor Size: 1 inch
• A/D Sample Depth: Native 14-bit A/D
• Full Well Capacity (1×1, 2×2, 3×3): 58ke-
• Full Frame Rate:USB3.0 Port:
  Full Resolution 26.5FPS @8BIT  20FPS@16BIT2160Lines  37FPS @8BIT  28.5FPS@16BIT1080Lines  71.5FPS @8BIT   55FPS @16BIT768Lines  97FPS @8BIT  76FPS @16BIT480Lines  152FPS @8BIT  117FPS @16BIT240Lines  280FPS @8BIT  215FPS@16BIT
• Readout Noise: 1.3 to 3.4e-
• Dark Current: -20℃，0.0005e- /pixel/sec
• Exposure Time Range: 30us-3600sec
• Unity Gain: 68
• Shutter Type: Electronic Shutter
• Computer Interface: USB3.0
• Built-in Image Buffer: 1GByte DDR3 Memory
• Cooling System: Two-stage TEC cooler
  Less than 1S lower than ambient temperature -30℃ in continuous mode More than 1S continuous mode or lower than ambient temperature -35℃ in single frame mode （Test temperature +20℃)
• Optic Window Type: AR+AR High Quality Multi-Layer Anti-Reflection Coating
• Anti-Dew Heater: Yes
• Back Focal Length: Actual Back Focal Consumed: 14 mm (Combined with CFW)
  Standard BFL: 17.5mm（±0.5）
• Weight: 845g
