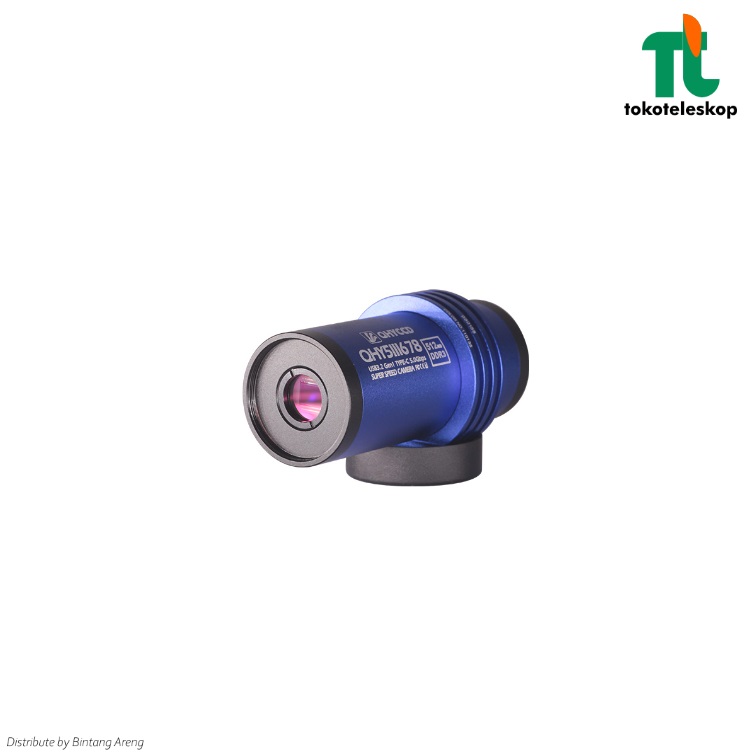

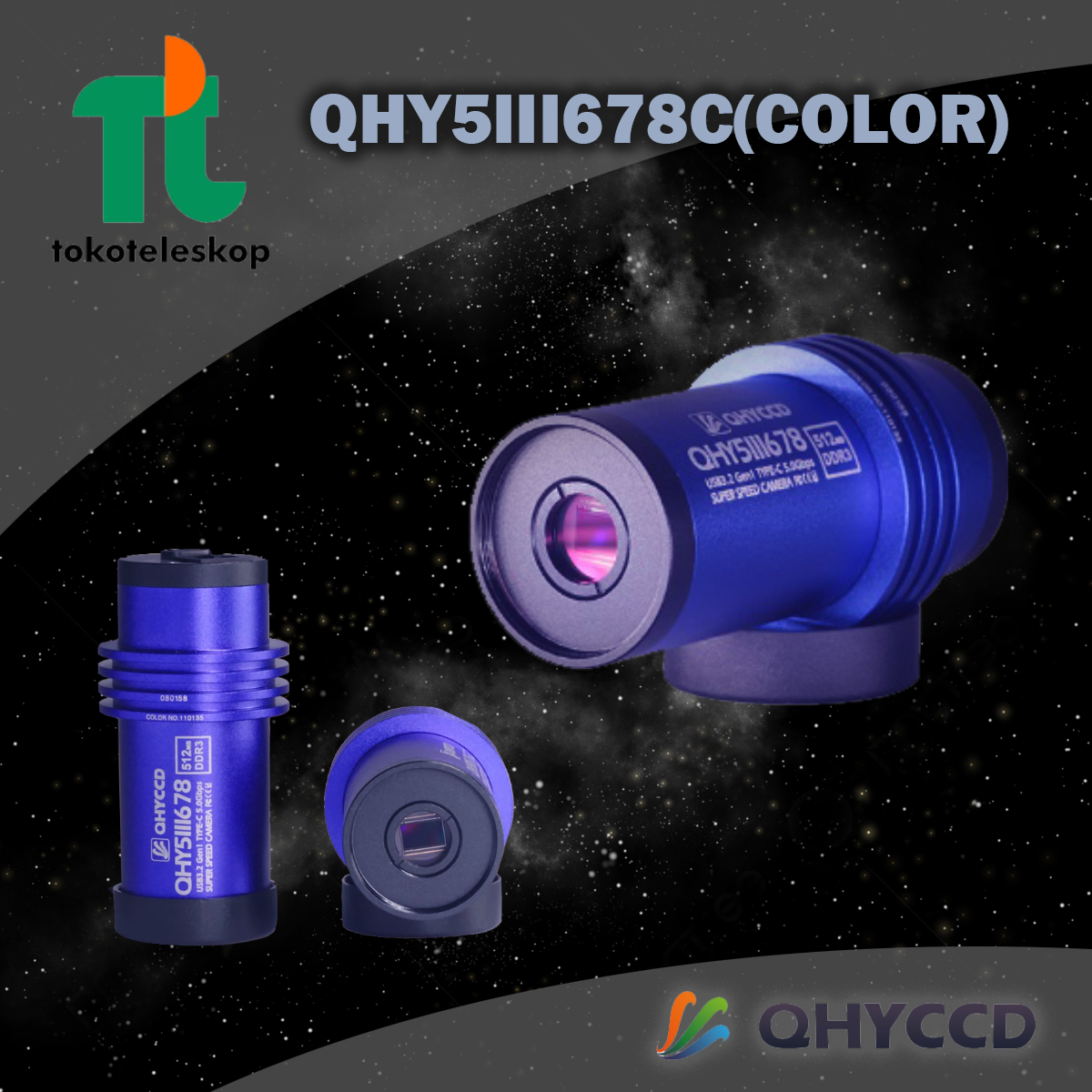

QHY5III678M/C, the upgraded version of QHY5III 178M/C, is a new planetary and guiding camera of QHY5III V2 series with excellent near-infrared high sensitivity. The product comes with an IR850 filter.
Specification:
- Model: QHY5III678
- CMOS Sensor: Sony IMX678
- Pixel Size: 2.0um*2.0um
- Effective Pixel Area: 3856*2180
- Effective Pixels: 8.4 Mega Pixel
- Fullwell: 9ke-
- Readout Noise: 0.57-3.3e-
- AD Sample Depth: 12-bit (output as 16-bit and 8-bit)
- Built-in Image Buffer: 512MB DDR3 Memory
- ROI Frame Rate:
- Full Resolution 43FPS @8BIT 22FPS @16BIT
- 1080Lines 85FPS @8BIT 43.5FPS @16BIT
- 640Lines 140FPS @8BIT 71FPS @16BIT
- Exposure Time Range: 11us-900sec
- Shutter Type: Electric Rolling Shutter
- Computer Interface: USB3.2 Gen1 Type-C
- Guide Port:st4
- Telescope Interface: 1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector (An IR AR glass and an IR850nm filter are included in the standard version.)
- Back Focal Length: 17mm(with adapter); 8±0.5mm(without adapter)
- Weight: 90g
